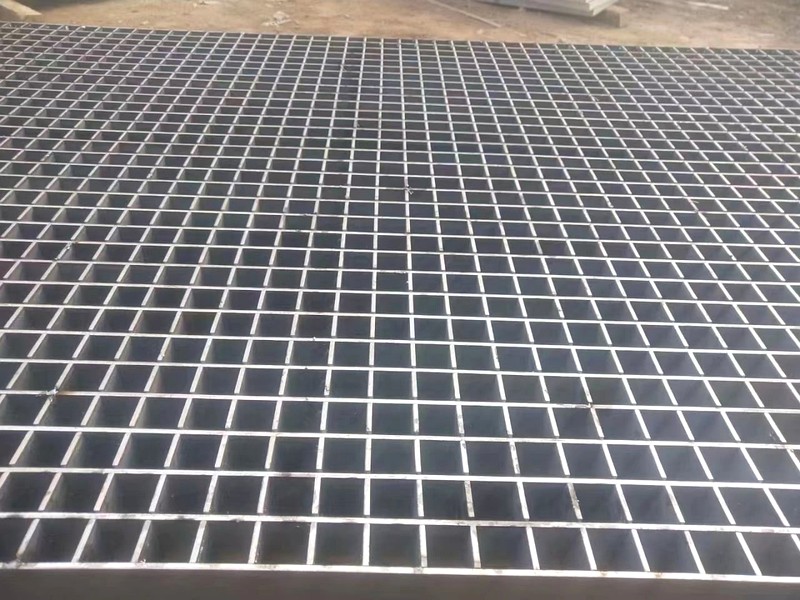

Steel Grating

Steel grating is made of bearing bars and cross bars welded or press-locked together at their intersection points. It provides excellent load-bearing capacity, slip resistance, and ventilation. Widely used in industrial platforms, walkways, stair treads, trench covers, and drainage systems in refineries, power plants, and construction projects.

Key Features

• High load-bearing capacity for heavy industrial use
• Open mesh design for ventilation and drainage
• Excellent slip resistance for safe walkways
• Hot-dip galvanized for superior corrosion resistance
• Custom panel sizes and bearing bar spacing available

Specifications

Material	Mild carbon steel, stainless steel
Bearing Bar Size	20x3mm to 100x8mm
Bearing Bar Pitch	15mm, 20mm, 25mm, 30mm, 40mm
Cross Bar Pitch	50mm, 100mm
Panel Size	Custom (standard 1m x 6m)
Surface Treatment	Hot-dip galvanized, painted, untreated
Type	Welded, press-locked

Applications

• Industrial platforms and walkways
• Stair treads
• Trench and drainage covers
• Refinery and power plant flooring
• Bridge decking
